HZS25 factory price precast dry mix elba concrete batching plant

FOB Reference Price:Get Latest Price
$17,500.00 - $23,800.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HZS25
Production Capacity:
25m3/h
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Power Type:
Electric
Power(W):
50kw
Dimension(L*W*H):
17843x11430x13000mm
Weight:
Based
Warranty:
12 Months
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Applicable Industries:
Construction works
Condition:
New
Place of Origin:
Henan, China
Brand Name:
DASION
Certification:
ISO9001:2008&CE
Product name:
HZS25 factory price precast dry mix elba concrete batching plant
Capacity:
25m3/h
Control system type:
Central control
Mixing system:
Twin-shaft concrete mixer
Aggregate feeder:
Hopper
Discharging height:
3800mm
Max.mixing size:
80/60mm
Application:
Construction Projects
Type:
Fixed Concrete Batching Plant
Mixing cycle:
72s
Supply Ability
Supply Ability:
50 Set/Sets per Month factory price precast dry mix elba concrete batching plant
Packaging & Delivery
Packaging Details
1, Standard export packaging by container, which should be applicable to international requirement.
2, Big size equipment will be fixed by steel wire, while small ones together with spare parts will be packed into wooden boxes.
3, Special packing requirement from clients is available based on previous notice for factory price precast dry mix elba concrete batching plant.
Port
Qingdao Port, China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated

HZS25 factory price precast dry mix elba concrete batching plant

Product Description



DASION bucket type concrete batching plant consists of material batching, mixing and electric control system, etc, which is professional equipment for ready mix concrete production. It has advantages as bellows:

1.Land space saving;

2.Automatic operation production line;

3.Optional configuration;

4.Modular structure,easy transportation and quick install.





Technique Parameter



ModelHZS25HZS35HZS50HZS75
Capacity25m3/h35m3/h50m3/h75m3/h
Mixing systemTwin shaft concrete mixer
Aggregate feederBucket (Skip hopper)
Discharging height1500-3800mm3800mm3800mm3800mm
After-sale serviceErection & commissioning, operator training
Warranty12 months after erection
Concrete mixerJS500JS750JS1000JS1500
Discharging volume500L750L1000L1500L
Charging volume800L1200L1600L2400L
Mixing circle72s
Max. mixing size80/60mm
Aggregate batching machinePLD800PLD1200PLD1600PLD2400
Storage bins quantity2 or 3 or 4 sorts3 or 4 sorts3 or 4 sorts3 or 4 sorts
Aggregate scale hopper800L1200L1600L2400L
Weighing systemWater, Cement, Additive
Weighing precision       ±1%
Air systemAir compressor, etc
Control system typeComputer auto-control module (PLC can be optional item)

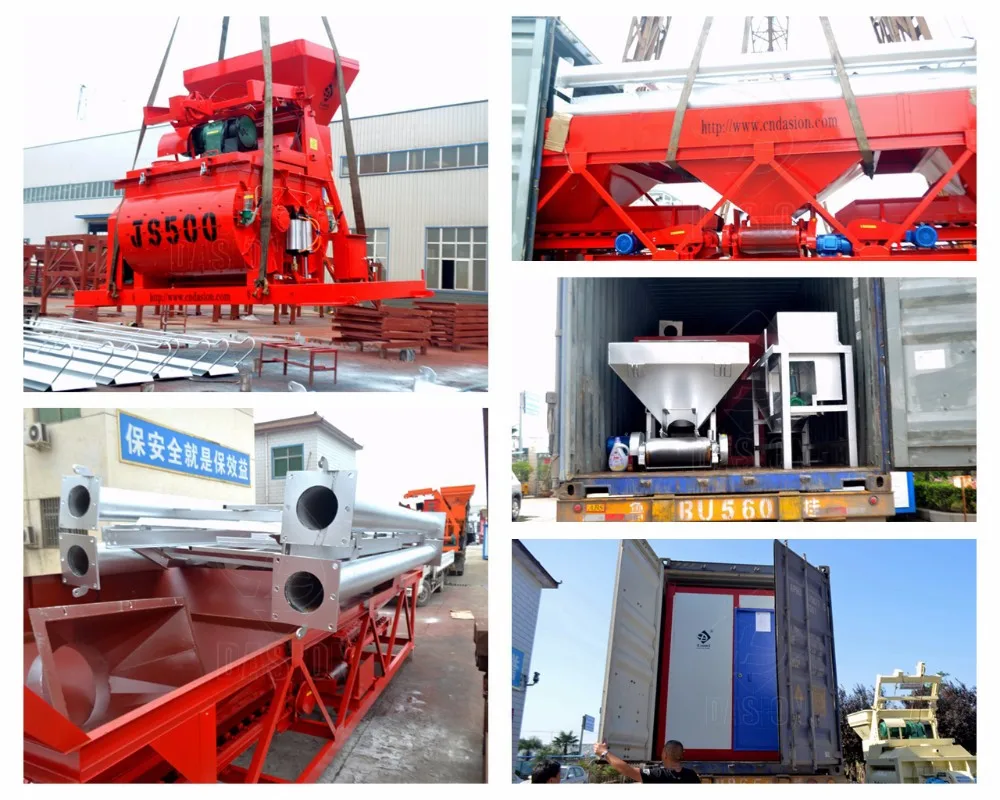

Detailed Images

Mixing system: Adopt JS series twin-shaft concrete Mixer for high quality of mixing effect. Assemble ladder, sidewalk and handrail, easily for worker maintenance. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniform. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials.



Cement system: Adopt separated cement silo and screw conveyor for cement storage and feeding, bulk cement pump can be provided based on customers requirement.



Aggregate Batching System: Adopt PLD series of automatically weighing and discharging machine, reliable quality and long service life. The each conveyor starts transferring material from the matching storage to the weighing hopper according to formula in turn, materials conveyed to next link after cumulative weighing. It’s suitable for small and medium project.



Control System: Adopt new-design of electrical weighing system, can work with computer, control module, digital display, etc, which will make sure the measurement accurate and timely. The control software will give signal to each part of the plant, to finish the material feeding, measurement, loading into the concrete mixer, mixing and discharging.

Why Choose Us

Henan DASION Machinery Co., Ltd is a manufacturer mainly engined in concrete euipment, such as concrete batching plants, concrete mixers, concrete pumps, etc. We have more than 18 years' experience.



We can provide ‘One-stop’ service in concrete equipment field. The professional technology and perfect sales service can meet your various of requirement.

Certifications



Our Services

Packaging & Shipping

Packing

1, HS code can be supplied to you for checking importing tax in your country.

2, Standard export packaging by container, which should be applicable to international requirement.
3, Big size equipment will be fixed by steel wire, while small ones together with spare parts will be packed into wooden boxes.

4, Standard configuration: 1x40HQ,1x20HQ for 25m3 concrete batching plant.

ShippingUsually by sea, sometimes by land, air
FAQ

Q1: Are you trading company or manufacturer?

A: We are factory. We can design and manufacturer products with our patent.



Q2: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q3: What is your payment method?

A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.



Q4: How many types of concrete batching plant you have?

A:Two types. We have stationary concrete batching plant and mobile concrete batching plant.



Q5: What’s the capacity of concrete batching plant do you have?

A:The capacity of concrete batching plants range from 25m3/h to 240m3/h.



Q6: Is the belt conveyor necessary?

A: No. The discharging height of concrete batching plant is 1m. If your discharging height is higher, the belt conveyor is necessary. It can reach 3.5/3.8/4.0 meters.



Q7: Do you have CE certificate for your concrete batching plant / cement silo?

A: Yes, we have. Both are our patent products, certificated by CE.
